1. 095009-6490 Injection Repair Kit Package List & Package Size

• Injection Repair KitSpare Parts List

No.	1	2	3

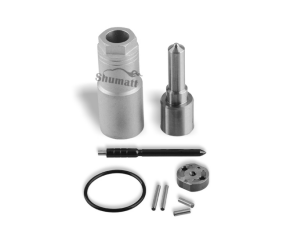

Name	Injection Repair Kit Assembly	Nozzle	Valve plate
Description	Injection repair kit assembly part number 095009-6490	Injector nozzle part number Order number: 093400-8870 Engraved number: DLLA139P887	Injector valve plate part number 295040-0400（04#）
No.	4	5	6

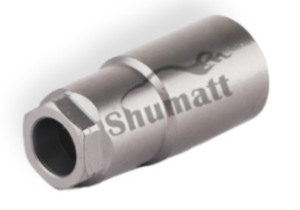

Name	Nut	O-ring	White Anti-rust Bag
Description	Before installation, ensure that the length * diameter * thread of the tight cap is consistent	Ensure that the sealing performance between the Injector and the engine meets the standard	Prevent accessories from rusting
No.	7
Image		/	/

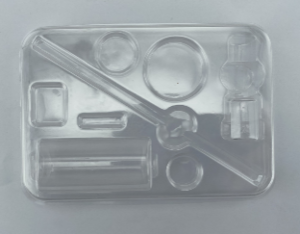

Name	Lining	/	/
Description	Place overhaul kit accessories	/	/

• Minors are prohibited from using theinjection repair kitassembly, O-ring, nozzle protective cover, oil return protective cover, VCI anti-rust bag, and bubble bag to avoid personal injury.
• O-rings and nozzle washer shimare one-time installation accessories and need to be replaced when installed again.
• The nozzle protective cover and oil return protective coverare recyclable accessories and can be reus
• VCI anti-rust bags and bubble bags are non-degradable materials, please dispose of them properly after using.
• The injection repair kitand the installation part duct must be treated with appropriate sealing oil during installation.

2. 095009-6490 Injection Repair Kit Storage Standard

• Choose a Suitable Storage Place

The warehouse and cargo yard where the injection repair kits are stored should be kept clean and dry, and away from the factory buildings that generate harmful gases and dust; do not mix with acid, alkali, salt and other substances; the storage place should have a good drainage system; the cargo yard should be flattened with gravel or furnace ash etc. to enhance the water permeability of the surface layer to keep the reservoir area dry.

• Strict Requirementsof Warehousing

Strict inspections should be carried out when the injection repair kits are put into storage, the surface cleaning work should be done well to remove water traces, oil stains, ash and other dirt, remove the rust and do anti-rust treatment in time. Packaged injection repair kits must be protected from damage.

• Keep The Warehouse Dry And Preventing Moisture

The relative humidity is usually below 70% for the injection repair kits placed in the room, and the corrosion of the injection repair kits is significantly reduced.

Injection repair kits must be stored in the warehouse, and they are forbidden to store in the same warehouse with commodities with high water content.

• StackProperly

After the injection repair kit is exposed to rain, the corrosion rate will increase significantly. The purpose of sealing is to isolate the injection repair kit from rainwater and humid air, so the warehouse window should be checked in time to avoid rainwater entering the warehouse.

If the injection repair kit package is damaged, it should be repaired or replaced; when the package is damp, the packaging material should be dried; if the original anti-corrosion and oil applied at the factory is found to be damaged or dried up, it should be cleaned and re-applied oil in time.

• It is forbidden to leave the injection repair kitexposed in the air for a long time.
• It is forbidden to store acid, alkali, salt and other substances with the injection repair kit.
• The unpacked injection repair kitmust be rust-proof during secondary storage.
